Recirculation from pump discharge through a flow control orifice and cooler into the seal chamber.
A Flow control orifice B Cooler C Temperature indicator
Recirculation from pump discharge through a strainer, a flow control orifice and a cooler into the seal chamber.
A Strainer B Flow control orifice C Cooler D Temperature indicator
Recirculation from a circulation device in the seal chamber through a cooler and back into the seal chamber.
A Circulation device B Cooler C Temperature indicator D Vent E Drain
Recirculation from the pump discharge through a cyclone separator delivering the clean fluid to the seal chamber. The solids are delivered to the pump suction line.
A Cyclone separator B Contaminated liquid IN C Clean liquid OUT D Separated liquid OUT
Injection of clean fluid into the seal chamber from an external source.
A From external source B To seal
Recirculation from the pump discharge through a cyclone separator delivering the clean fluid to a cooler and then to the seal chamber. The solids are delivered to the pump suction line.
A Cyclone separator B Cooler C Temperature indicator D Contaminated liquid IN E Clean liquid OUT F Separated liquid OUT
Reservoir providing a dead-ended blanket for fluid to the quench connection of the gland plate. Only recommended for vertical pumps.
A Reservoir

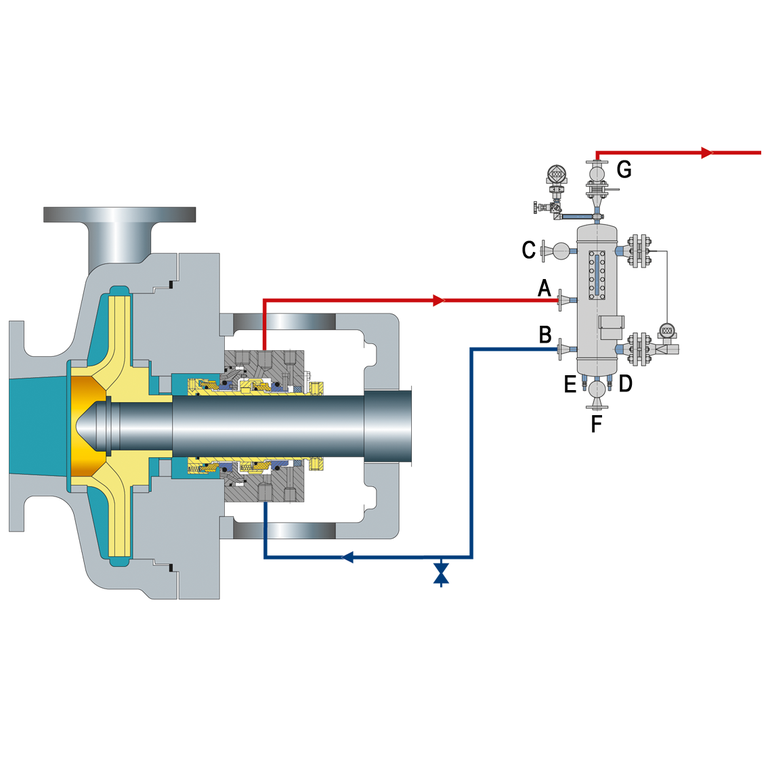

Reservoir providing buffer liquid for the outer seal of an arrangement 2 unpressurized dual seal. The buffer liquid shall be maintained at a pressure less than seal chamber pressure and less than 2.8 bar (40 PSI).
A From mechanical seal B To mechanical seal C Filling connection D Cooling water IN E Cooling water OUT F Drain G Connection to flare
Pressurized barrier fluid reservoir supplying clean fluid for an arrangement 3 pressurized dual seal.
A From mechanical seal B To mechanical seal C Filling connection D Cooling water IN E Cooling water OUT F Drain G From external pressure source
Barrier fluid system pressurized by a bladder accumulator supplying clean liquid for an arrangement 3 pressurized dual seal.
A Cooler B Bladder accumulator C Drain D Vent
