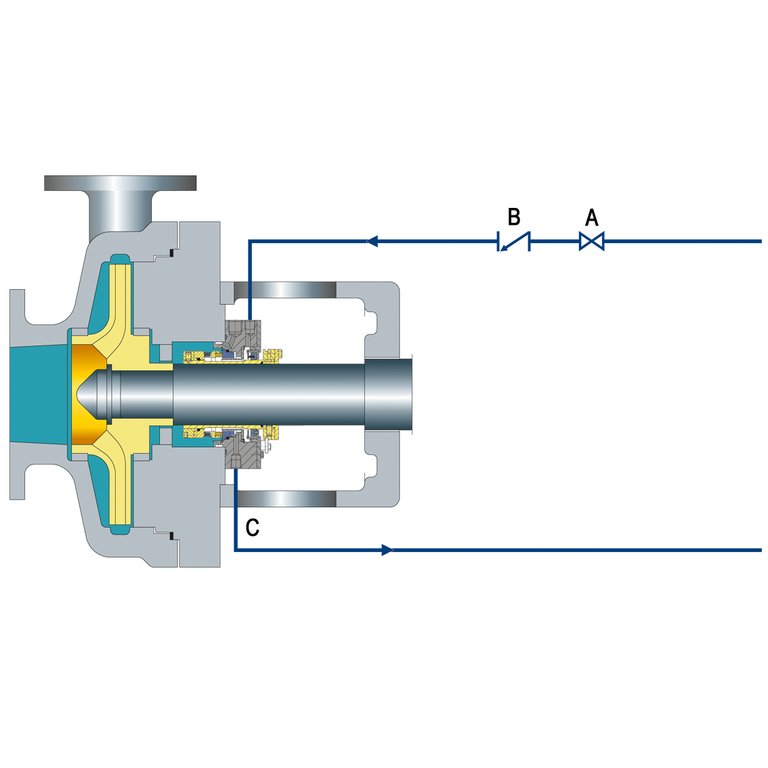

Quench stream from an external source to the atmospheric side of the seal faces. The quench stream can be low pressure steam, nitrogen or clean water.
A Valve B Check valve C Drain

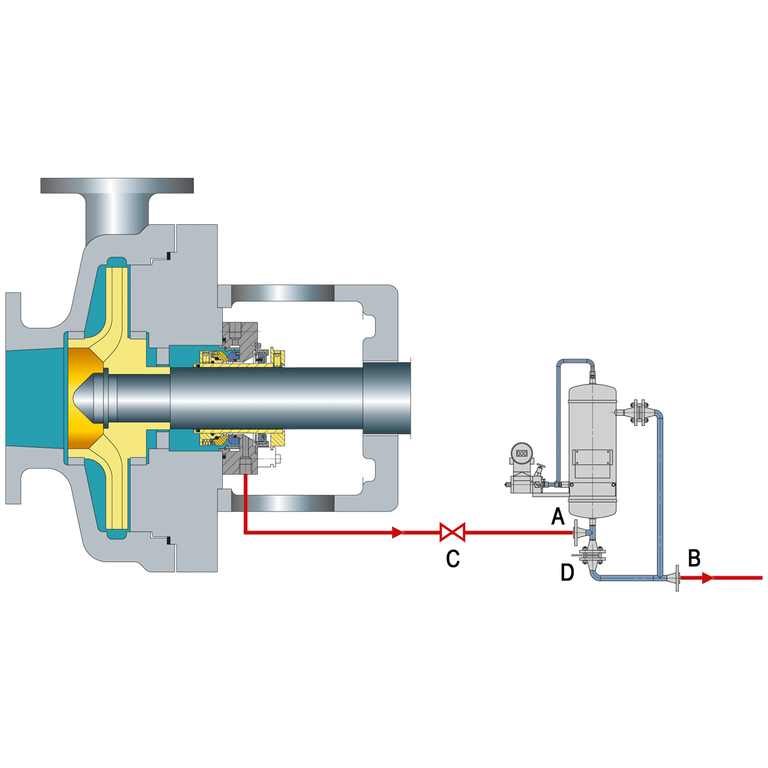

Atmospheric leakage collection and alarm system for condensing leakage. Failure of the seal will be detected by an excessive flow rate into the leakage collection system.
A From mechanical seal B To liquid collection system C Valve (locked open) D Flow control orifice

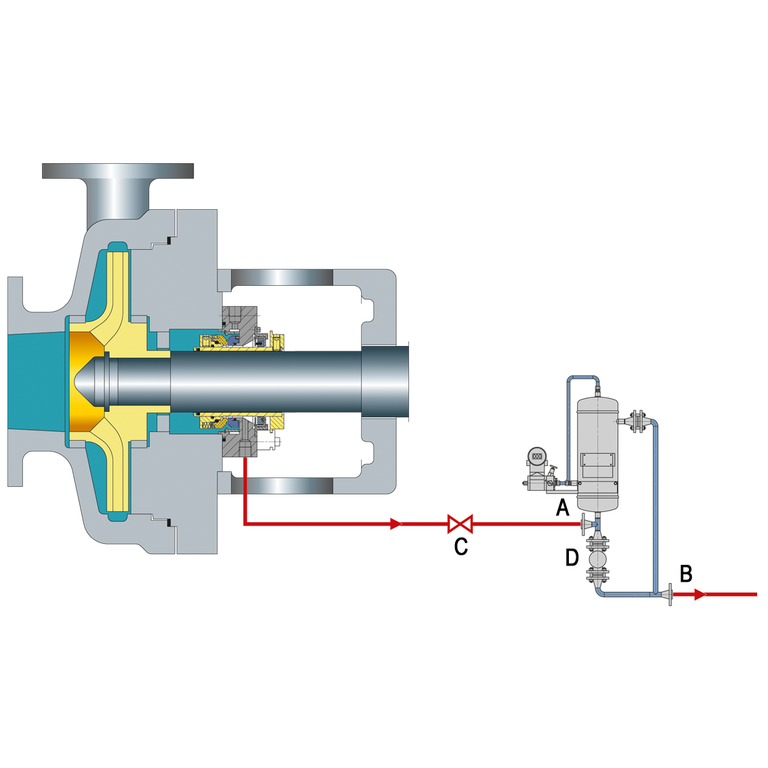

Atmospheric leakage collection and detection system for condensing leakage. Failure of the seal will be detected by a cumulative leakage into the system.
A From mechanical seal B To liquid collection system C Valve (locked open) D Valve (normally closed)

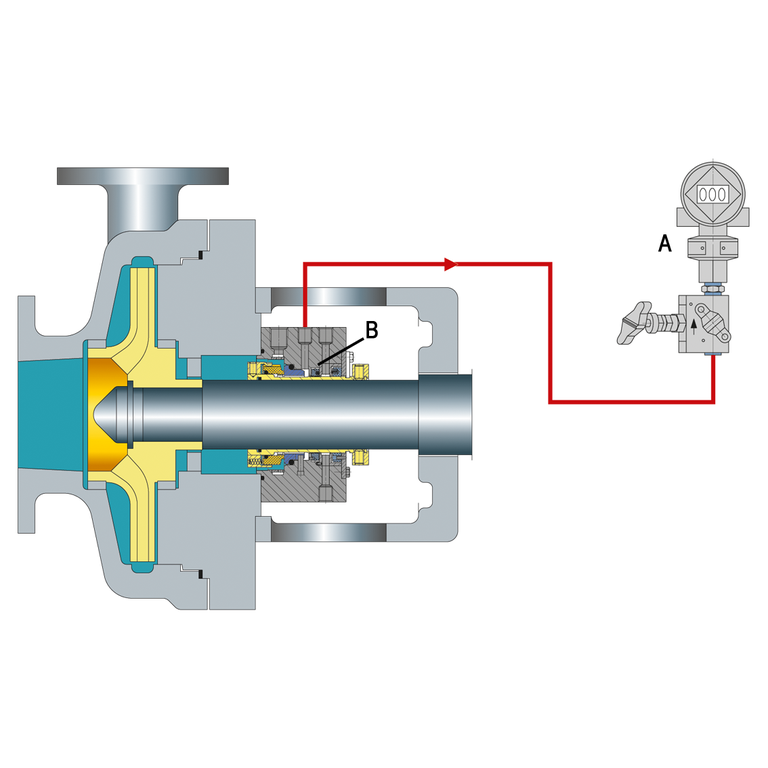

Throttle bushings in the seal gland minimize the seal leakage leaving the seal gland and allow for detection of a seal failure by an alarm of the monitoring pressure transmitter.
A Pressure transmitter B Segmented bushing

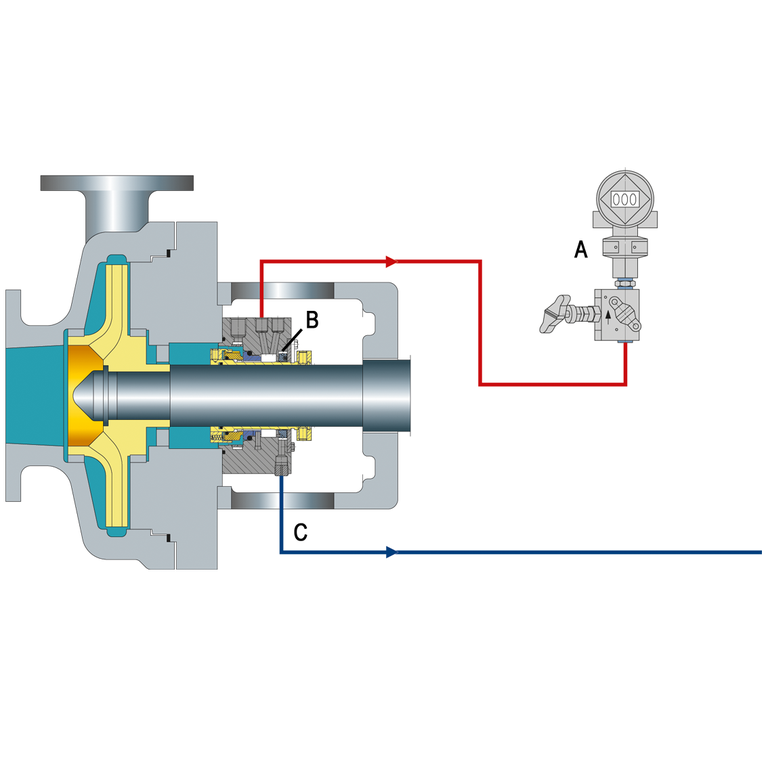

An orifice plug in the drain port minimizes the seal leakage leaving the seal gland and allows for detection of a seal failure by an alarm of the monitoring pressure transmitter.
A Pressure transmitter B Segmented bushing C Orifice plug drain

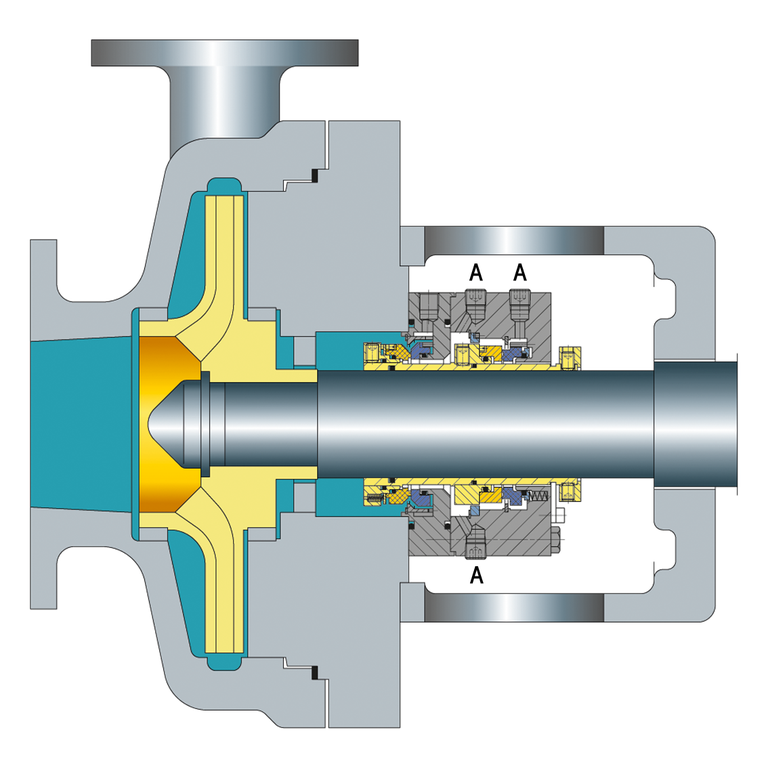

Tapped connections for the purchaser’s use e.g., for future use of buffer gas.
A Connection plugged

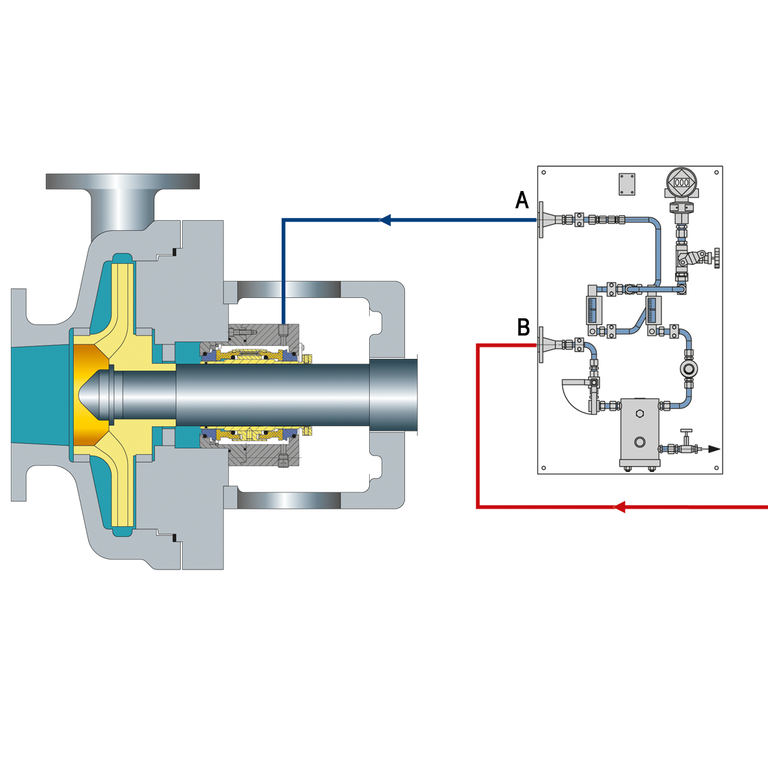

Externally supplied buffer gas for arrangement 2 unpressurized seals with a dry running containment seal. Buffer gas is maintained at a pressure less than seal chamber pressure.
A Gas OUT B Gas IN

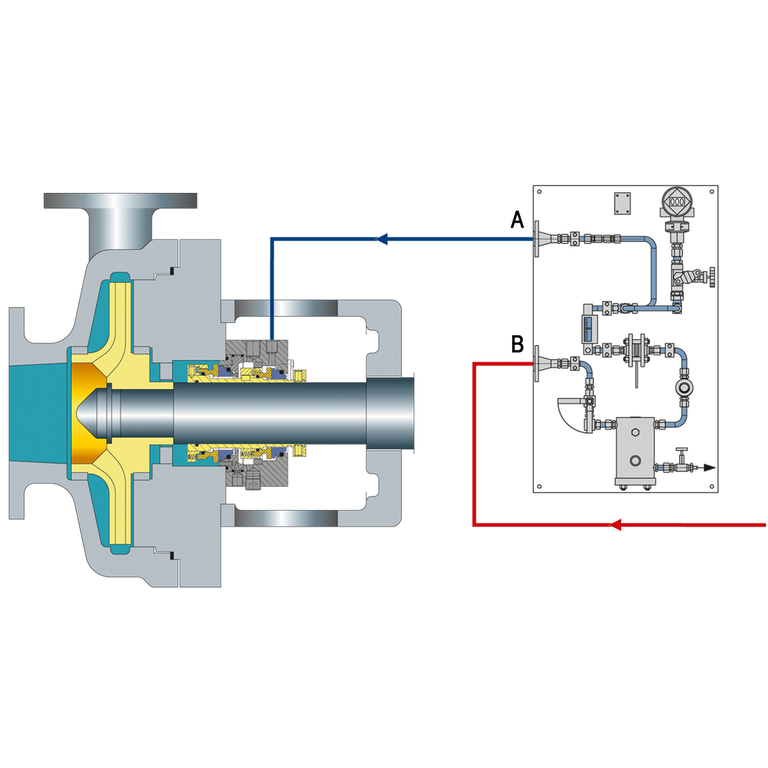

Externally supplied barrier gas for arrangement 3 dual pressurized non-contacting gas seals.

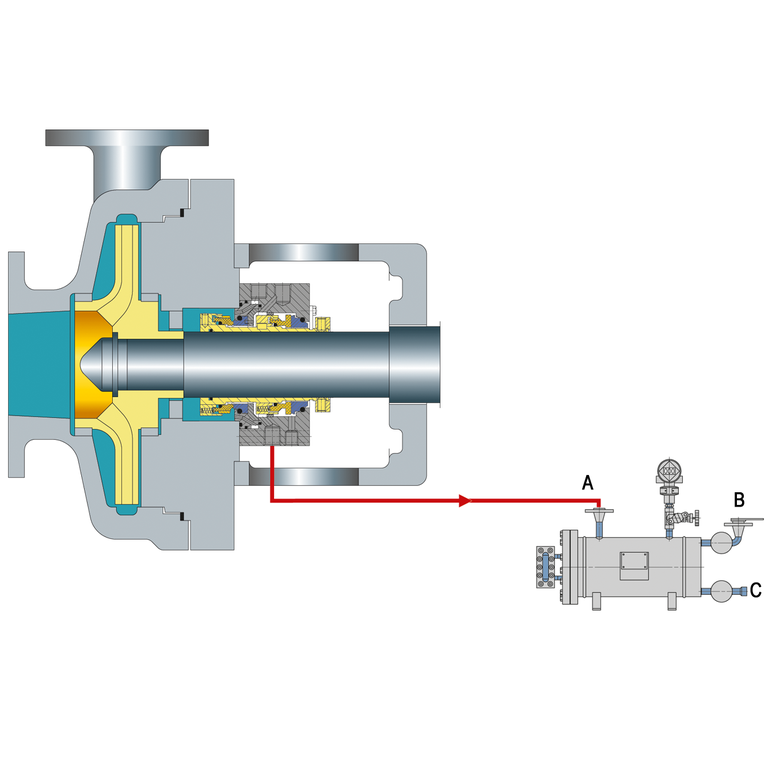

A containment seal chamber leakage collection system for condensing or mixed phase leakage on arrangement 2 unpressurized seals with containment seals.
A From mechanical seal B To vapor collection system C Drain
A containment seal chamber drain for non-condensing leakage on arrangement 2 unpressurized seals with containment seals. Used if the pumped fluid does not condense at ambient temperatures.
